Dazzle L120 Pro High-Precision 7 Inch Touch Screen Panel Ideal for Commercial User 3D Printer

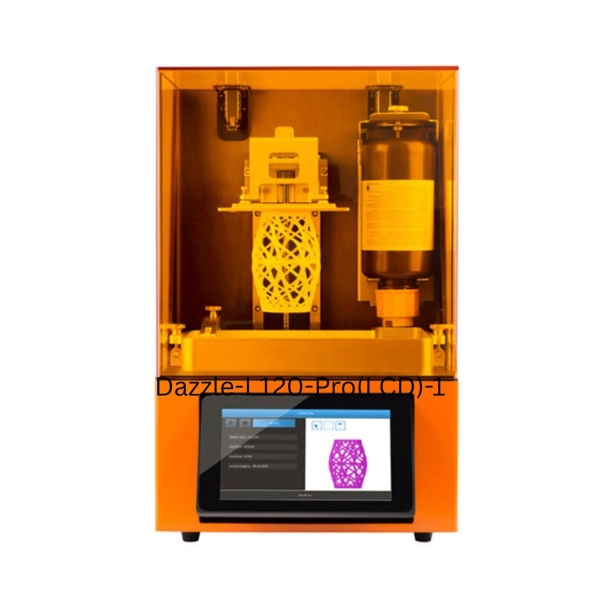

The Dazzle L120 Pro is an advanced SLA / MSLA (Stereolithography / Masked Stereolithography) 3D printer engineered to deliver ultra-fine, high-fidelity prints with industrial-level reliability. Suited for both beginners and seasoned professionals, it balances user-friendliness with robust performance.
PRODUCT OVERVIEW
Introduction: Precision and Reliability
The L120 Pro elevates precision printing with enhanced features and durability over its predecessors. With improvements like automated systems and upgraded control interfaces, this printer maintains ease of use without compromising output quality. It's an ideal tool for those who want a step above basic models while staying accessible.
|
Auto Resin Wiper The pro version includes an effective resin wiper to remove particulates and improve print consistency and quality by mixing the solid powder evenly when ceramic resin, powder, or other creative materials are added. While, when printing with Dazz 3D resins, there is no need to open the auto resin wiper due to the extension of printing time and quality it may caused. |
 |
 |
Intuitive Control The L120 Pro employs a 2K LCD panel (2560 × 1440 resolution) combined with a powerful 48 W, 405 nm LED light source, providing uniform exposure and finely defined layers. The XY resolution remains at 47 µm, while vertical resolution (Z) is 10 µm. Layer thickness settings include 0.025, 0.035, 0.05, and 0.1 mm, allowing you to balance detail and speed per project needs. |
|
Workflow, Usability & Connectivity The build area of the L120 Pro is 120 × 68 × 150 mm, identical in footprint to the base L120 but upgraded in stability and feature set. Dual Z-axis guide rails ensure smooth, wobble-free vertical motion, and the structure uses improved materials to sustain long print sessions while keeping precision intact. |
 |
Application & Output Quality
Highlight Feature:
⦾ XY resolution: 47 µm
⦾ Z (vertical) resolution: 10 µm
⦾ Supported layer thicknesses: 0.025 / 0.035 / 0.05 / 0.1 mm
⦾ Build volume: 120 × 68 × 150 mm
⦾ Light source: 48 W, 405 nm LED (purple)
⦾ Enhanced usability: 7″ rotatable touchscreen, auto resin refill, resin wiper, air purification system
| Product Name | Dazzle L120 Pro High-Precision 7 Inch Touch Screen Panel Ideal for Commercial User 3D Printer |
|---|---|
| Weight | 12.50 Kg |
| Speed | 12-36mm/hr |
| Connectivity | USB,WiFi,Ethernet |
| Machine Structure | Metal with Fiiber Glass |
| Printing Technology | LCD Stereolithography (LCD-SLA) |
| Printing Size | 420 x380 x640mm (16.5 x15 x 25.2 in) |
| Printing Precision | 0.025 / 0.035 / 0.05 / 0.1 mm |
| Printing Filaments | Dazz 3D Resin EC08,HT3,F20,R1,LC09,W1,WG5 Third Party Resi |
| Operating System | Windows or Mac OS |
| Dimensions | 221 x 175 x 403mm (8.7 x 6.9 x 15.9 in) |
| Manufacturer | Dazzle |
| Color | Silver |
| Country of Origin | China |
