High-Accuracy Servo Vinyl Cutting Plotter with SignMaster Software

DMInteract DM160VC 7pcs Pressure Roller and 1540mm Cutting Width Vinyl Cutting Plotter

Actual Stock Can Be Confirmed After Placing the Order.

SKU

DM160VC

Be the first to review this product

$2,464 $2,347

Notify me when the price drops

Pay 4 interest-free payments of AED 421.00.Learn more

Features of DMInteract DM160VC Vinyl Cutting Plotter

➤ Precision Servo Drives – Stable, high-accuracy cutting.
➤ CCD Camera Registration – Quick contour cutting with mark detection.
➤ ±0.02 mm Accuracy – Crisp cuts with no burrs.
➤ 1200 mm/s Cutting Speed – Tracks long rolls up to 4 m.
➤ Versatile Connectivity – Supports USB, U-disk, network, and Wi‑Fi.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

PRODUCT OVERVIEW

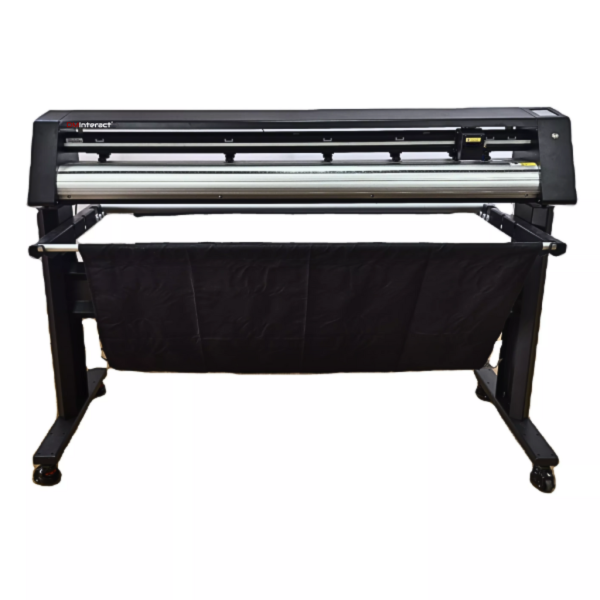

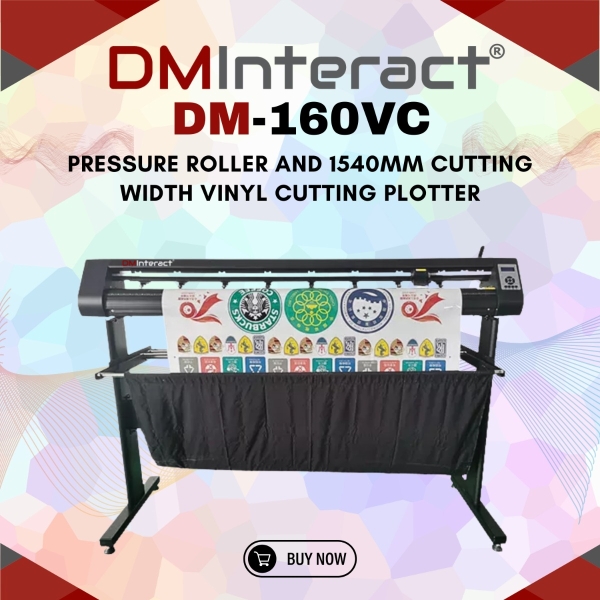

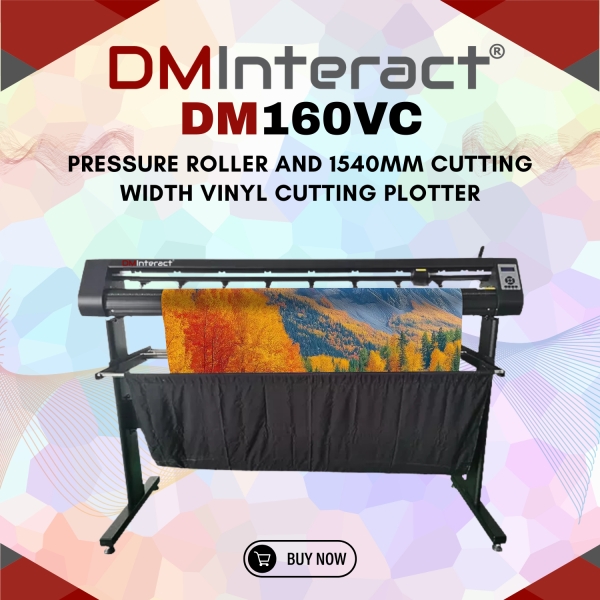

The DM160VC High-Speed Servo Vinyl Cutter is a professional-grade roll-fed plotter designed for high-volume applications, offering a balance between speed and precision. Equipped with a high-resolution CCD camera, it quickly scans registration marks for accurate contour cutting. The servo drive system ensures stable and precise performance, while the cutter supports long-length tracking, handling rolls up to 4 meters without deviation. With a user-friendly touchscreen interface and multiple connectivity options—including USB, U-disk, network, and Wi-Fi—it integrates seamlessly with popular design software like SignMaster and AIDCut-CAM. This cutter is ideal for producing banners, decals, and other large-format graphics efficiently and accurately.

The DM160VC Vinyl Cutting Plotter is a robust, high-precision machine engineered for both professional sign makers and demanding creative users. Powered by a high-torque servo motor system, it delivers exceptionally smooth and accurate cutting performance, achieving a precision level of up to ±0.02 mm.

Equipped with a built-in CCD camera, the DM160VC delivers advanced contour cutting capabilities by automatically recognizing registration marks, making it especially effective for handling pre-printed media and complex graphics. Its cutting speed of up to 1200 mm/s, combined with stable long-length tracking and 6 pressure rollers, enables consistent performance across large-scale and continuous jobs.

Seamless file transfer capabilities via USB connection and U-disk support enhance workflow flexibility. Additionally, the DM160VC integrates easily with industry-standard software such as SignMaster and AIDCut-CAM, offering intuitive control and broad file compatibility.

Whether you're producing signage, vehicle wraps, vinyl decals, labels, or other professional-grade applications, the DM160VC delivers exceptional speed, precision, and versatility to meet the highest production demands.

Moving Carriage

Steel frame with inliner bearing, it has more cutting pressure, which is adjustable easily, and it is good at heat dispersion. With a built-in high-resolution CCD camera, it can scan multiple mark points automatically to realize the contour cutting function.

Steel Thorn and Pressure Roller

The plotter is equipped with steel that can fix media effectively to avoid any sliding and ensure feeding precision. There are several pressure rollers on the upside of the beam; the distance between each roller can be adjusted to fit different-sized media. These high-precision imported rollers assure no offset feeding over long distances.

Multiple Interfaces

Multiple data transfer methods are supported. U-disk, network, USB cable, and Wi-Fi connection. Users are allowed to select the data transfer method depending on various situations.

Touch Control Screen

The DMInteract DM160VC vinyl cutting plotter features an intuitive touch control screen designed for ease of use. This user-friendly interface enhances workflow by simplifying access to key functions. Operators can navigate settings efficiently, ensuring a smooth and streamlined cutting experience.

Paper Feeding System

The plotter features an advanced auto paper feeding system designed for effortless handling of roll materials. This mechanism ensures a smooth and accurate feeding process, reducing manual intervention. Its streamlined operation enables faster production with minimal interruptions.

Suction Holes

Upon analyzing the product page for the DMInteract DM160VC Vinyl Cutting Plotter on DubaiMachines.com, it is clear that the machine is designed for professional-grade vinyl cutting with notable features like 7 pressure rollers and a 1540mm cutting width. The product emphasizes high precision, ease of use, and a durable build suitable for industrial applications.

Paper Pressing Device

There is a row of paper-pressing devices behind the plotter beam. During the working process, these paper presses can well fix the materials, ensure that the materials move within the fixed range, and reduce the offset.

Press bar

After loading the material, pull down the handle to press the material so that the material can be fixed during the paper feeding process and reduce the offset.

Graduation

The graduations are marked on the paper-feeding side of the working platform. So that the material size can be easily measured and adjusted when feeding the material

Switch on the Button & Power Interface

Switch on and off easily with a press button after connecting the power cable to the plotter. We offer various worldwide standard power plugs. The voltage can also be customized due to customer needs.

Catch-up basket

The machine is equipped with a set of catch-up baskets, including 2 pieces of holding rollers and one piece of high-quality nylon cloth bag, saving space while keeping materials clean and tidy.

Signmaking Applications

Every company needs to advertise for itself, but advertising is often far too expensive for small- to medium-sized businesses. The vinyl cutter can offer relief. The vinyl cutter is the central device in a company for use in advertising. It not only saves a large amount of money but also provides plenty of room to develop your creativity and ideas. With a vinyl cutter, you can, for example, advertise in the following ways quickly and easily:

Corporate sign making
Corporate vehicle signage
Design of the shop window advertising
Creating banners and stadium advertising at events
Design of the premises of the Company (Room label, signs, screening applications, design elements)
Production of stickers and labels as so-called Print&Cut applications—first you print on, e.g., sign vinyl, then contour-cut with the vinyl cutter.

Home Applications

Anyone who wants to individually create their personal environment will find a vinyl cutter to be the right tool. With these machines, many different creative ideas can be realized, as this selection shows.

Customized wall tattoo
Create kitchen surfaces

Hobby Applications in the Fields of Decoration, Model Making, etc.

Create templates for painting colorful wall designs, including banners, ornaments, and children’s artwork.
Individual design of garments like t-shirts, jackets, sweatshirts, etc., with flock or flex film.

More Information
Product Name	DMInteract DM160VC 7pcs Pressure Roller and 1540mm Cutting Width Vinyl Cutting Plotter
Weight	64.00 Kg
Structure	With stand
Max. media width	1660mm
Max. cutting width	1540mm
NO. of Pressure Roller	7pcs
Cutting Accuracy	600a+/- 0.02mm
Drive Model	Servo drives
Speed	Max 1200mm/s
File Transfer Mode	USB/Network/U-Disk/Wi-Fi
Positioning System	High resolution CCD Camera
Registration Marks	Circle marks/Coner marks/QR code
Software Included	AIDCut-CAM, SignMaster
Feeding System	Pull shaft feeding structure, simple & time-saving
Motor Power	25watt
Force	1000G
Work Voltage	110V-130V or 210-230V, 50hz/60hz
Ambient Temperature	+5°C ~+ 35°C
Packing Size	1990 x 380 x 500mm(0.38CBM)
Package Weight	67 kgs
Manufacturer	DMInteract
Country of Origin	China
