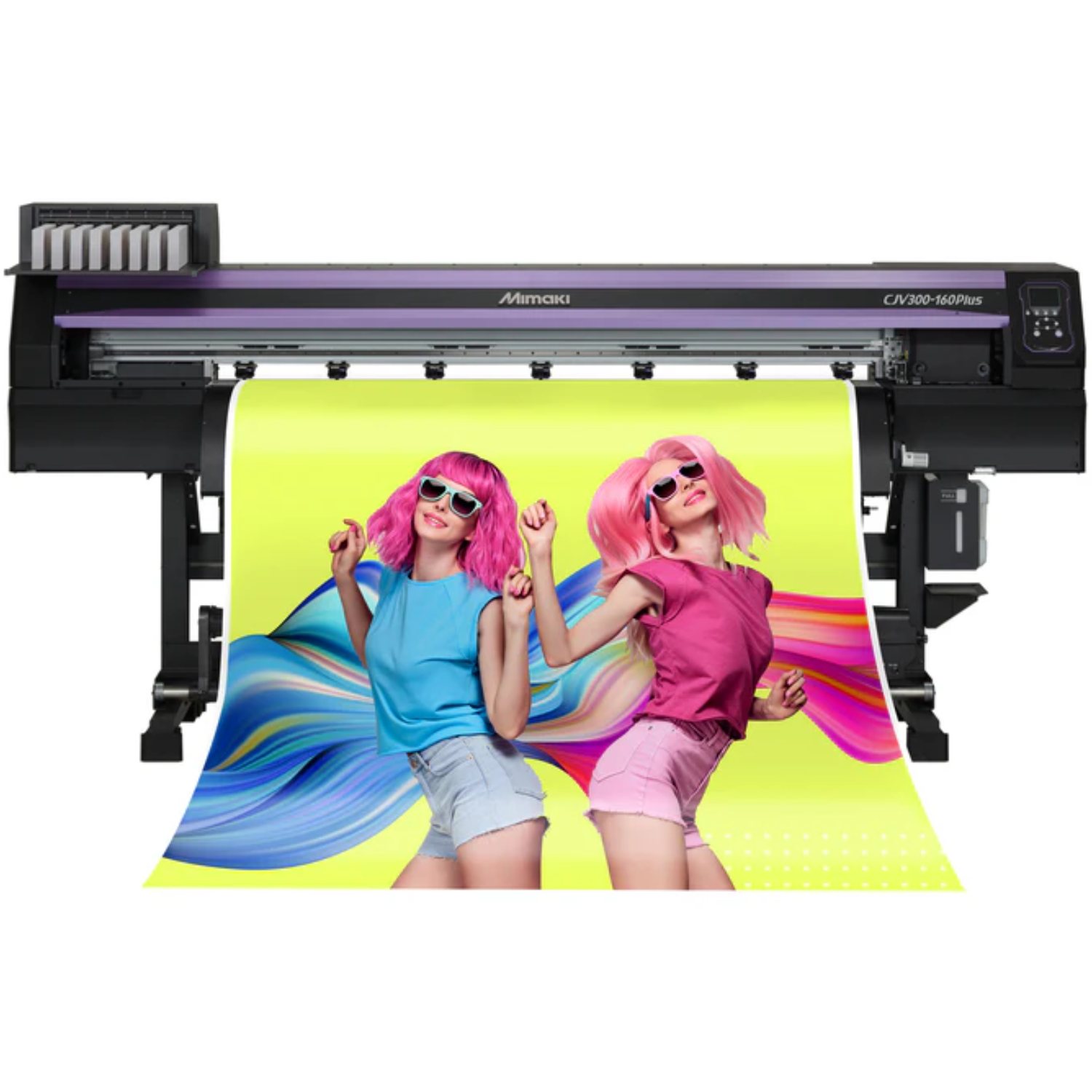

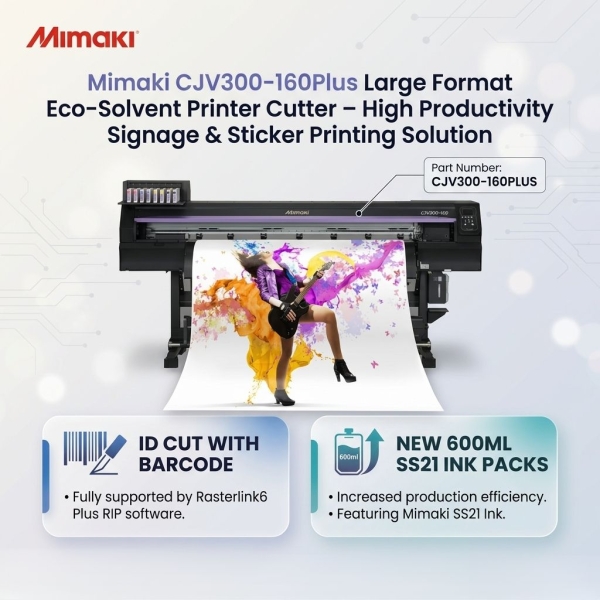

Mimaki CJV300-160 Plus 64" 8-Color Roll-to-Roll Wide Format Printer
Quick Overview
- 64” (1.6m) Print & Cut system
- 8-color ink configuration for vibrant output
- High-speed roll-to-roll production printing
- Precision contour cutting (label & signage use)
- Reliable industrial-grade continuous operation
PRODCUT OVERVIEW
Mimaki CJV300 Series: High-Speed Integrated Printer/Cutter
Mimaki CJV300 Series wide-format, high-speed eco-solvent printer/cutter devices go beyond extraordinary to deliver an amazing array of applications. Eco solvent inks in a variety of colors – including Silver – and advanced printing technologies means you can produce anything from fine art reproductions to outdoor signage. And, with precision cutting capability on board you can go beyond posters and banners to deliver complete campaigns that include labels, decals and even T-shirt transfers. Employing the Mimaki CJV300 Series printers’ superb quality, color fidelity, throughput and contour cutting then printing flexibility, you’ll go beyond the expected to capture more wallet share and deliver whatever your customers can imagine.
Go Beyond Conventional with the Mimaki CJV300
§ Fast printing speeds up to 1140 SqFt (105.9 SqM) per hour
§ Cut and print capability on one unit
§ High quality print resolution of up to 1,440 dpi
§ Two model widths: 54-inch (1361 mm) and 64-inch (1610 mm)
§ Choice of eco solvent or dye sublimation ink sets:
§ Eco solvent: 10 color options including Silver, White, Orange and Light Black inks
§ Dye sublimation: vibrant 6 color dye sub options
§ 2-liter bulk ink system standard for most colors
§ Nozzle Check Unit and Nozzle Recovery System
§ 3-way intelligent heater
This series delivers an array of applications to optimize workflows. Equipped with innovative technologies for faster throughput and on-board cutting, you can create indoor and outdoor graphics using eco-solvent inks or textile, apparel and soft signage using dye-sublimation inks.
- Available in 54” and 64” widths with print speeds up to 1,140 SqFt/Hr
- Print and cut capability in one unit
- Ability to pre-cut before printing to prevent film separation
- Choice of eco-solvent ink or dye-sublimation ink sets:
Eco-solvent: 10 color options including Silver, White, Orange and Light Black inks
Dye-sublimation: 6 color options including Light Blue and Light Magenta inks
| Product Name | Mimaki CJV300-160 Plus 64" 8-Color Roll-to-Roll Wide Format Printer |
|---|---|
| Printhead | Double Printheads |
| Print Resolution | 360 dpi ~ 1440 dpi |
| Print Speed | 1,140 SqFt/Hr (105.9 SqM/Hr) |
| Print width | 63.4 in (1610 mm) |
| Print Media width | 63.8 in (1620 mm) |
| Ink Type | Eco-solvent ink |
| Ink Size | SS21: 600ml and 2 Liter for most colors; 220ml only for silver and white | ES3: 440ml cartridges for most colors; 220ml for white | Sb54: 440ml and 2 Liter for most colors |
| Media Thickness | 1.0 mm |
| Roll Media Weight | 45 kg |
| Certifications | VCCI class A, FCC class A, ETL UL 60950 | CE Marking (EMC, Low voltage, and Machinery directive) | CB, RoHS, REACH, Energy Star, RCM, EAC |
| Interface | Ethernet, USB 2.0 |
| Power Supply | AC100 – 120V / AC200 – 240V |
| Power Consumption | AC100V: 1.44kW x2 or less / AC200V: 1.92kW x2 or less |
| Operating Temperature | 68 – 86 °F (20 – 30 °C) |
| Operating Humidity | 35 – 65% Rh (Non condensing) |
| Printer Type | Inkjet |
| Dimension | 2,775 x 700 x 1,392 mm |
| Weight | 178.00 Kg |
| Manufacturer | Mimaki |
| Country of Origin | Japan |
