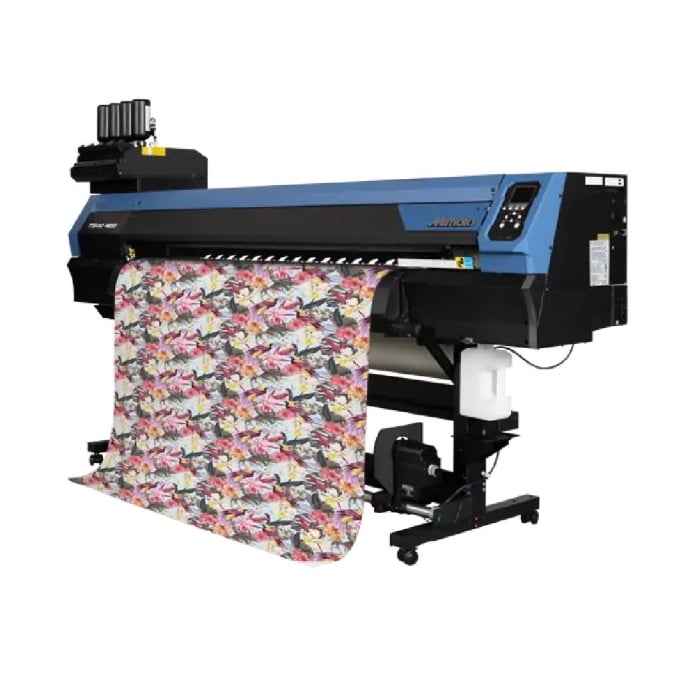

Mimaki TS100-160 64" High-Speed Roll-to-Roll Dye Sublimation Printer
Quick Overview
- 64” dye-sublimation roll-to-roll printing
- High-speed textile production output
- Vibrant color reproduction for fabric & soft signage
- Precision ink control for smooth gradients
- Reliable continuous industrial workflow
PRODUCT OVERVIEW
Low-Cost Proven Technology
Unbeatable price/performance ratio
This affordable, high-quality printer offers a low-cost route into creating beautiful personalised textiles and custom decor. Including a media take-up system, that handles rolls up to 45kg, the TS100-1600 uses 1 litre ink bottles to both reduce cost and replacement frequency.
Plus with fast turnaround small-lot production you can reduce your inventory-holding costs.
Productivity Built-In
Non-stop constant production
The TS100-1600 features a Dot Adjustment System that automatically fine-tunes ink droplet landing accuracy and optimises the media feed, eliminating the need for manual intervention.
Plus Mimaki’s Nozzle Check Unit and Nozzle Recovery System checks, cleans, and substitutes missing nozzles to ensure uninterrupted continuous stable production.
High-Quality On-Demand
Small-batch production and product diversification
Meeting customer demand for greater customisation and product variety, the TS100-1600 offers an optimum quality, fast turnaround solution for on-demand production and shorter delivery times, with no plate-making required.
With Mimaki’s Advanced Pass System 4 and Waveform Control technology built-in, you can be sure of sharp ultra-vivid colours and smooth gradations, with no visible banding.
Entry-Level Price, Professional Results
The TS100-1600 is an affordable professional grade sublimation roll-based printer. Consistently and expertly print highly detailed photographic quality graphics for small to large production runs.
- Available in 64” with print speeds up to 753 Sq Ft/Hr
- Nozzle Check Unit (NCU), automatically monitors printhead performance and detects clogged nozzles
- Nozzle Recovery System (NRS), automatically substitutes unproductive nozzles, avoiding unnecessary downtime and poor image quality
- Sublimation ink colors: Blue, Magenta, Yellow and Black
- NEW Dot Adjustment System (DAS) automatically aligns to ensure consistent quality and repeatability
- NEW, easier to use RIP software, RasterLink7, included; reduces RIP time by 25%
- TxLink4 Lite supported for more advanced workflows
| Product Name | Mimaki TS100-160 64" High-Speed Roll-to-Roll Dye Sublimation Printer |
|---|---|
| Printhead | Double Printheads |
| Print Resolution | 360 dpi ~ 900 dpi |
| Print Speed | 753 Square feet per hour |
| Print width | 63.4 in (1610 mm) |
| Print Media width | 63.8 in (1620 mm) |
| Ink Type | Dye Sublimation |
| Ink Size | 1 liter bottle (1000 mL) |
| Media Thickness | 0.04 in (1.0 mm) |
| Roll Media Weight | 45 kg |
| Certifications | VCCI class A, FCC class A | CE Marking (EMC, Low voltage, Machinery directive, and RoHS) | CB, ENERGY STAR®, RCM, EAC |
| Interface | 1000 Base-T Ethernet cable or USB2.0 cable |
| Power Supply | AC 100-120V/ AC200-240Vx1 |
| Power Consumption | INLET 1/2: 1,440W or less (AC100V environment) 1,920W or less (AC200V environment) |
| Operating Temperature | 68 – 86 °F (20 – 30 °C) |
| Operating Humidity | 35 – 65 % RH (Non condensing) |
| Printer Type | Inkjet |
| Dimension | 2,775 x 700 x 1,475 mm |
| Weight | 166.00 Kg |
| Manufacturer | Mimaki |
| Country of Origin | Japan |
