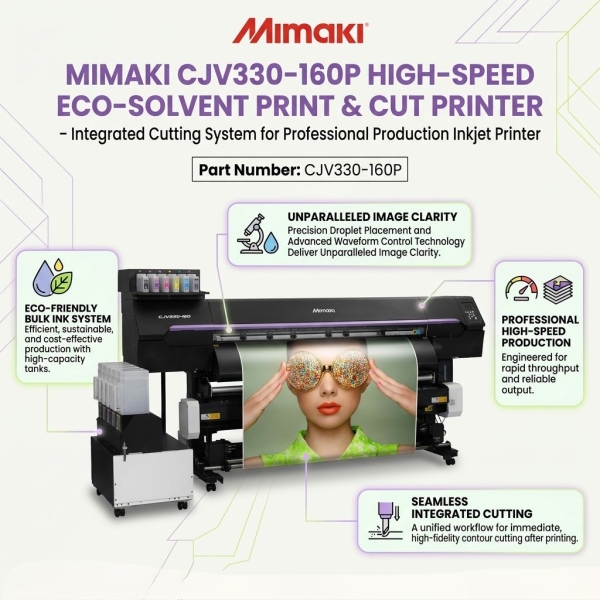

Mimaki CJV330-160P 64" 8-Color Roll Media Print Roll Media Print Printer
Quick Overview
- 64" (1.6m) Print & Cut System – Combines printing and contour cutting in one machine
- 8-Color Ink Configuration – Wide color gamut for highly vibrant, accurate prints
- High-Precision Print Quality – Advanced head technology for sharp, smooth output
- Integrated Cutting Function – ID Cut, contour cut, and auto crop mark detection
- High Productivity Workflow – Supports continuous roll media with fast production speed
PRDUCT OVERVEIEW

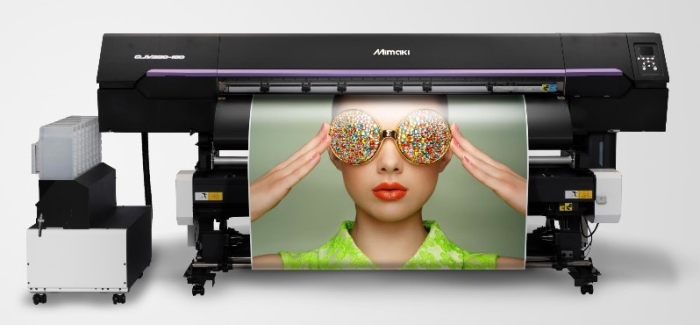

Mimaki JV330-160B Solvent Printer
The Mimaki CJV330 is meticulously engineered for flagship performance, it boasts unparalleled image quality and productivity. With a chassis 230% sturdier, droplet placement is remarkably precise. The revolutionary "Mimaki Weaving Dot Technology" ensures seamless prints, suppressing banding. Improved single-line resolution and enhanced nozzle count redefine high-quality output, making this series an industry benchmark for innovation and user-friendly excellence.
Commercial Print and Cut Capabilities
Compatible with Mimaki Original Eco-Solvent inks this print & cut device offers commercial level workflows and quality for high demand print businesses. Capable of producing a wide range of sign & graphic applications including durable banners, signs, decals, posters, and more for internal and external use. Mimaki Eco-solvent inks are now compatible with the 3M™ MCS™ Warranty. Customers will be able to receive the 3M™ MCS™ Warranty Program certification – the most comprehensive warranty in the graphics industry – with **JV/CJV330 printers combined with SS22, SS21, or BS4 inks, which boast the best weather resistance in the industry.
- Multiple media roll handling unit
- Optional Integrated XY Slitter
- In machine lighting
- V-shaped cut function
- Mimaki Remote Access
- 2 staggered heads (6400 nozzles)
Evolution of Usability
Setting three rolls of media at a maximum significantly saves labor for media replacement. Multiple media are attachable, and this creates a space-saving and efficient work environment.
Just lightly rotating a handle replaces the media, so anybody can use it easily.
| Product Name | Mimaki CJV330-160P 64" 8-Color Roll Media Print Roll Media Print Printer |
|---|---|
| Printhead | Double Printheads |
| Print Resolution | 600 dpi ~ 1200 dpi |
| Print Speed | up to 1076.4 SqFt/Hr (100.00 m2/h) |
| Print width | 63.4 in (1610 mm) |
| Print Media width | 63.8 in (1620 mm) |
| Ink Type | Eco-solvent ink |
| Ink Size | 2L ink pack |
| Media Thickness | 0.04 in (1.0 mm) |
| Roll Media Weight | 45 kg |
| Certifications | VCCI class A, FCC class A, ETL IEC 62368-1, CE Marking (EMC, Low voltage, Machinery directive, and RoHS), CB, REACH, Energy Star, RCM, EAC, KC, UKCA |
| Interface | Ethernet 1000 BASE-T (Recommended) / USB2.0 Hi-speed |
| Power Supply | AC100-120/200-240V±10%, 50/60Hz±1Hz ×2 |
| Power Consumption | Max. 1,440 W or less x 2 / Min. 4.5 W or less (Sleep mode) |
| Operating Temperature | 20–30 °C (68–86 °F) |
| Operating Humidity | 35–65% Rh (Non condensing) |
| Printer Type | Inkjet |
| Dimension | 3,170 × 1,215 × 1,305 mm |
| Weight | 373.00 Kg |
| Manufacturer | Mimaki |
| Country of Origin | Japan |
