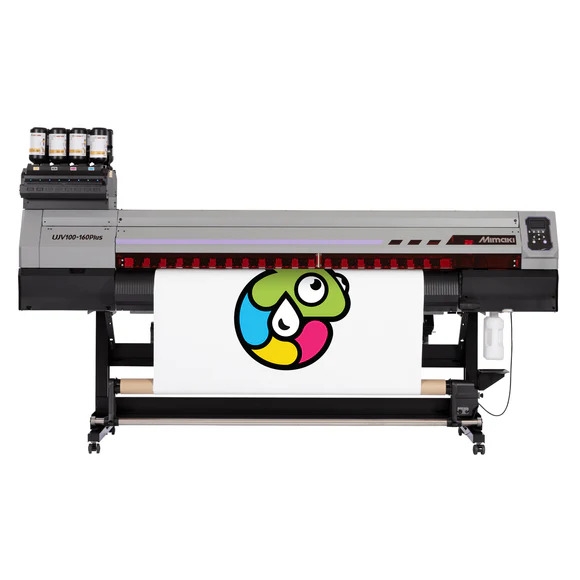

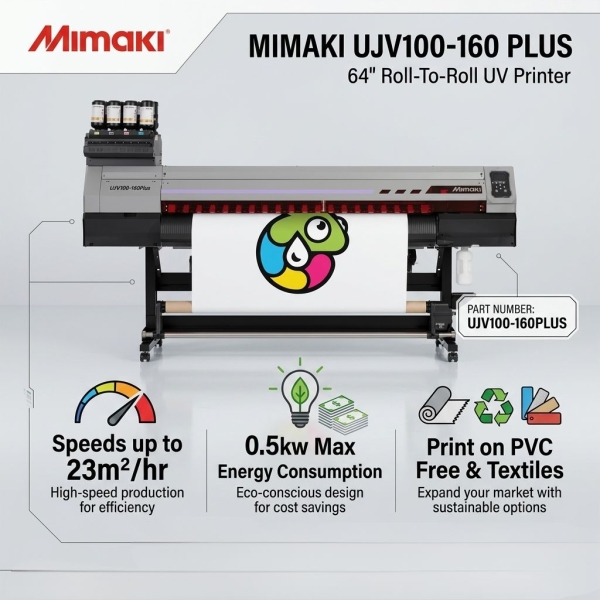

Mimaki UJV100-160 PLUS 64" Roll-To-Roll UV Printer
Specifications
- UV Instant-Curing Ink
- Print Only
- Speeds up to 23m²/hr
- 0.5kw Max Energy Consumption
- Print on PVC Free & Textiles
- Great way into UV Printing
- 20% energy saving vs. Latex / Eco Solvent
Product OVERVIEW
The Mimaki UJV100-160 Plus Print Only
The Mimaki UJV100-160 Plus is a versatile 1.6m roll-to-roll LED UV printer designed to make high-quality printing more accessible, efficient, and profitable. Whether you’re producing retail graphics, window displays, labels, backlit signage, or point-of-sale materials, the UJV100-160 Plus delivers vibrant, durable results with the flexibility to print onto a wide range of mediaWith instant UV curing, prints are ready for finishing immediately after production, helping you speed up turnaround times while reducing production bottlenecks. Combined with white and clear ink options, the UJV100-160 Plus opens up a world of creative possibilities, from striking window graphics to premium layered print effects.
Designed for Quality, Built for Simplicity
Mimaki has engineered the UJV100-160 Plus to simplify production without compromising on quality. Featuring intelligent automation tools such as the Nozzle Check Unit (NCU) and the Nozzle Recovery System (NRS), the printer automatically detects and compensates for nozzle issues, helping to maintain output consistency and minimise downtime. This means less operator intervention, reduced waste, and more reliable production — even on long print runs.The integrated Dot Adjustment System (DAS) automatically optimises print settings whenever media or print conditions change, reducing manual setup time and helping operators achieve consistent results with minimal experience. Combined with Mimaki’s MAPS4 anti-banding technology, the printer produces smooth gradients and high-density prints with exceptional image quality.
Unlock More Creative Applications
The UJV100-160 Plus gives you the freedom to create more with advanced layered printing capabilities. Produce vivid graphics on coloured materials, high-impact backlit displays, premium labels, and eye-catching window graphics using up to three print layers, including white and clear inks for added depth and texture.
Because UV inks cure instantly, printed media can be laminated, cut, or finished immediately after printing, helping you move jobs through production faster.
Reduce Running Costs Without Sacrificing Quality
Built with efficiency in mind, the UJV100-160 Plus includes Mimaki’s Ink Saving Function, helping reduce ink usage by up to 50% while maintaining natural colour balance. This allows businesses to lower operating costs and improve profitability without compromising print quality on suitable applications.
The LED UV curing system is also energy-efficient, reducing power consumption while eliminating drying time. Combined with GREENGUARD Gold certified inks, the UJV100-160 Plus supports safer indoor applications and a more environmentally conscious workflow.
| Product Name | Mimaki UJV100-160 PLUS 64" Roll-To-Roll UV Printer |
|---|---|
| Print Head | On-demand piezo head (2 staggered layout) |
| Interface | USB2.0 Hi-Speed, Ethernet 1000 BASE-T |
| Print Area | 63.4″ (1610.0 mm) |
| Operating Temperature | Temperature 20° – 30°C Humidity: 35 – 65 % RH (Non condensing) |
| Paper Width | 63.8″ (1620 mm) |
| Power Supply | AC100~120V/200~240V±10% 50/60Hz±1Hz |
| Printer Type | Inkjet |
| Wireless | No |
| Duplex | No |
| Fax | No |
| Copier | No |
| Color Printer | Yes |
| Dimension | 109.3 x 27.6 x 58.1″ (2775 x 700 x 1475 mm) |
| Weight | 167.00 Kg |
| Max. media width | up to 45 kg |
| Certifications | VCCI class A, FCC class A, ETL IEC 62368-1, CE Marking (EMC, Low voltage, Machinery directive, and RoHS), CB, REACH, ENERGY STAR®, EAC, RCM |
