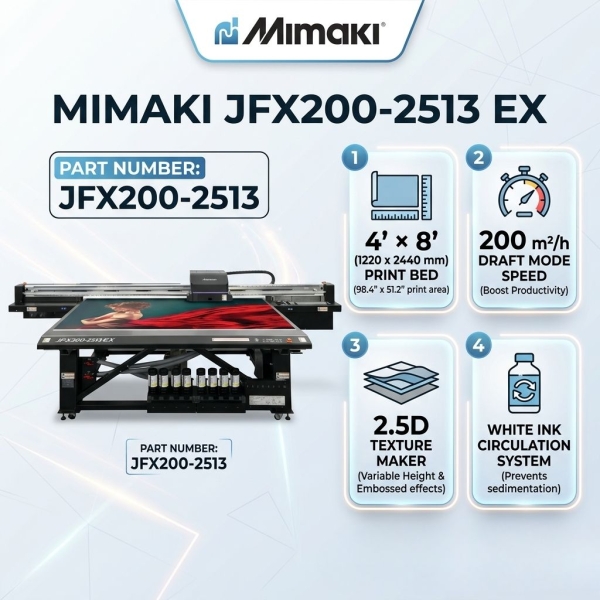

Mimaki MM-JFX200-2513 EX UV Flatbed Printer

Mimaki JFX200-2513 EX 98 x 51" UV-LED Flatbed Graphics UV Printer

SKU

JFX200-2513

Be the first to review this product

$66,704 $63,528

Actual stock determine at the time of order confirmation.

Notify me when the price drops

Pay as low as per month in 4 equal installments interest free

We also accept

Flatbed UV Printer

The Mimaki JFX200-2513EX transforms your shop into a high-value production center by combining true 4′× 8′ UV-LED flatbed printing with speeds up to 200 m²/h in a cost-effective entry model. Its 2.5D Texture Maker and white ink circulation deliver striking textured graphics, while the 60 mm thick-media bed and dual-zone vacuum table adapt to everything from signs to dimensional décor. User-focused front-access controls and RasterLink RIP ensure you hit deadlines with minimal downtime

Features:

4′ × 8′ Print Bed
200 m²/h Draft Mode
2.5D Texture Maker
White Ink Circulation
60 mm Media Thickness

Skip to the end of the images gallery

Skip to the beginning of the images gallery

PRODUCT OVERVIEW

With a choice of inks, including white and clear, these flatbeds deliver endless options to print to a wide range of substrates. Seamlessly create signage, posters, wayfinding, decorative panels and more.

JFX200-2531:

Print single sheets up to 8’ x 10’, dual sheets up to 4’ x 8’ or a variety of pre-cut pieces
Dual origin points to increase productivity
Two independent vacuum pumps and user-adjustable layout pins
Standard ionizer bar reduces static-related print issues
Uninterrupted Ink Supply System included
Eco-friendly with low VOC, GREENGUARD Gold certified UV-LED inks
RIP software RasterLink6 included

Items included with the Mimaki JFX200-2513 EX 4' x 8' UV Flatbed Printer

Dual-zoned vacuum table and user-adjustable layout pins
Foot pedal to easily control vacuum when loading media
Nozzle Recovery System and Nozzle Check Unit
Variable Dot Technology and Mimaki Advanced Pass System (MAPS) for smooth gradients and solids
Greenguard Gold
UV-LED inks in 4 and 6 color configurations plus Clear, Primer and White
Updated RasterLink6 Plus to support textured print workflows (2.5D)
USB/Ethernet connectivity

More Information
Product Name	Mimaki JFX200-2513 EX 98 x 51" UV-LED Flatbed Graphics UV Printer
Printhead	Double Printheads
Print Resolution	300 dpi ~ 1200 dpi
Print Speed	269 SqFt (25 SqM) / Hr
Print width	50.0 in x 51.2 in (1270 mm x 1300 mm)
Ink Size	1 liter bottles
Media Thickness	1.96 in (50 mm)
Certifications	VCCI class A, FCC class A, ETL UL 60950 \| CE Marking (EMC, Low voltage, Machinery directive) \| CB report, RoHS
Interface	USB2.0
Power Supply	200 V AC-240 V AC, 50 Hz/60 Hz, less than 12 A
Power Consumption	AC200V: 2.88 kVA or less
Operating Temperature	59° – 86° F (15-30° C)
Operating Humidity	35–65 % RH (Non condensing)
Printer Type	Inkjet
Dimension	(4,400 x 2,450 x 1,250 mm
Weight	630.00 Kg
Manufacturer	Mimaki
